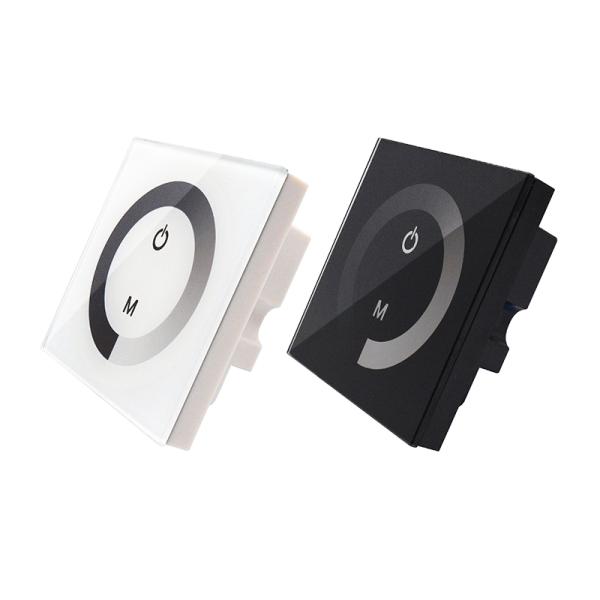

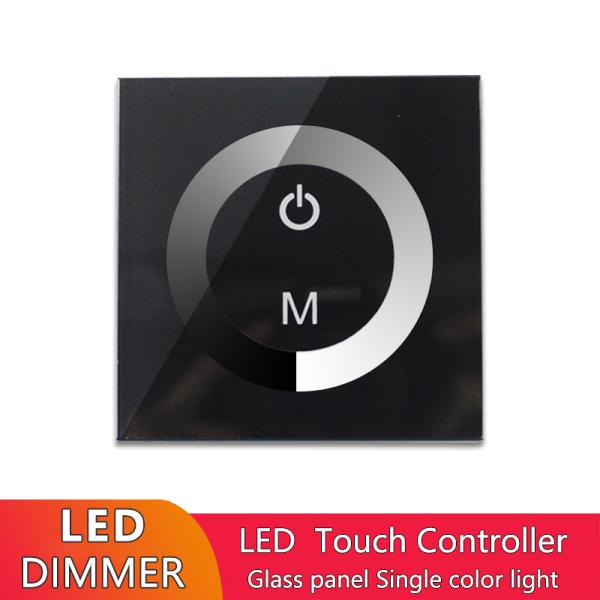

Wall Mounted 12V 24V LED Lighting Dimmer Switch For Single Color Strip Light

Place of Origin : China

Packaging Details : 50pcs/box

Price : negotiation

Certification : CE

Model Number : Dimmer

MOQ : negotiation

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 3-10days

Warranty(Year) : 1-Year

Type : Remote Control

Product name : Wall Mounted LED Dimmer

Application : Single Color LED Strip

Voltage : 12-24V

Output current : 8A/CH

Output Current : 1CH

Output power : 12V<96W; 24V<192W

Size : L86*W86*H36mm

Working temperature : 20-60

Contact Now

Wall Mounted LED Dimmer Controller DC 12V 24V Full Touch Ring Lighting Controller Panel For Single Color Strip Light

Description

Wall-mounted Touch Panel Switch Dimmer Controller 2835 5050 Single Color LED Strip Tape Lighting
Product Description:

1.Monochrome touch panel controller is a new generation of intelligent monochrome controller developed by the latest capacitive touch technology and wireless technology.

2.Adopt color ring selection and full touch panel mode, humanized design, beautiful appearance and easy operation;

3.Adopt stable wireless and capacitive touch mode, just touch the corresponding button lightly with your finger to realize long-distance non-directional color control. Color selection, mode change, brightness and speed adjustment and other related functions can be performed.

4.This product can adapt to various constant voltage 12V/24V monochromatic lamps, such as 5050 monochromatic led strips, monochromatic hard strips, monochromatic flexible strips, monochromatic modules, etc.

Basic Parameters:

◆ Input voltage: DC12-24V

◆ Output current: <8A

◆ Output channel: 1CH

◆ Static power consumption: <1W

◆ Output power: 12V<96W; 24V<192W

◆ Size: L86W86H36mm

◆ Weight: 130g

◆ Working temperature:-20-60°C

Specification

item	value
Warranty(Year)	1-Year
Lighting solutions service	Lighting and circuitry design, Onsite metering, Project Installation
Product Weight(kg)	0.13
Place of Origin	China
Origin	Guangdong
Brand Name	Megbox
Type	Remote Control
Max. Load Power	192W
Connection Mode	common anode
Product name	LED Dimmer
Application	Single Color LED Strip
Voltage	12-24V
Output current	8A/CH
Output Current	1CH
Static power consumption	<1W
Output power	12V<96W; 24V<192W
Size	L86W86H36mm
Weight	130G
Working temperature	20-60

Product Description

Wall Mounted 12V 24V LED Lighting Dimmer Switch For Single Color Strip Light
